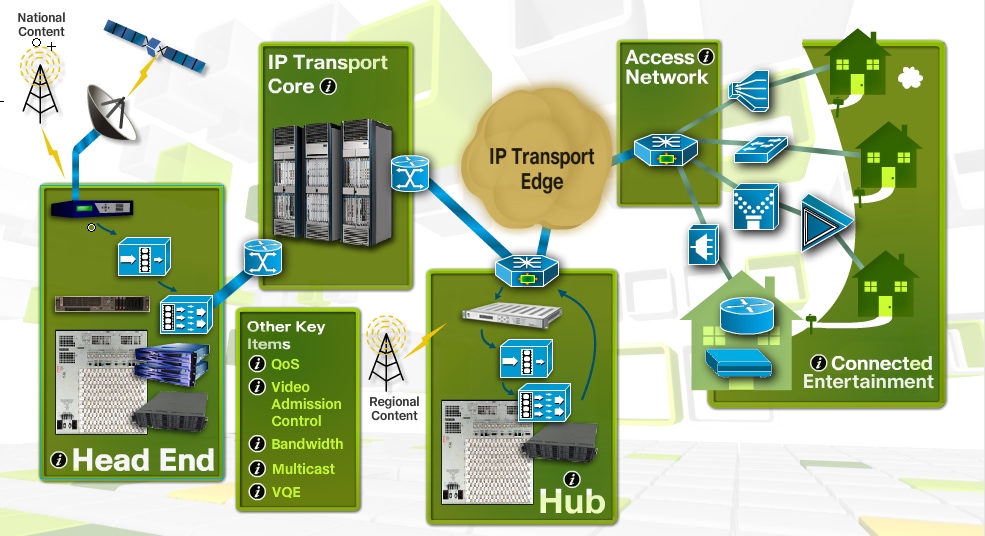

End to End or glass to glass solution for Service Provider Video

Here is a short synopsis on what each device does in the glass to glass topology.

Head End

1. IRD – Integrated Receiver Decoder ( Head End will have multiple IRD’s) . An IRD separates the video signal from the carrier. This is called demodulation. Then the signal is decrypted. An IRD can process analog or digital (SDI or ASI) signals.
2. Encoder – Encodes uncompressed SDI to H.264 ( identical to MPEG-4) for digital transmission. The encoder creates a stream that conserves bandwidth.
3. ROSA – Performance monitoring, Configuration, Security mgmt, Error
   Detection and notification. Uses SNMP.
4. DCM – Digital Content Manager – This handles program insertion, multiplexing, converts ASI <-> IP, adjusts the bit rate, translates to MPEG-2 (only MPEG-2 is supported), virtualization of services, and grooming (pick and choose programs to be put on the stream).
5. Video Matrix Switch – layer 1, connects and switches signals.
6. CAS – Conditional Access System – controls who see’s what and what they can do with the content (DRM).
7. VOD system – Video on Demand

IP Transport Core

1. CRS-1

• Line rate multicast within the fabric
• fabric is service aware and has separate hardware queues
• self routing fully non-blocking fabric
• allows loss less transport in the event os a component failure by supporting 1 to “n” between 8 separate fabric planes.
• a prune or a failure will not provide an undesirable effect and does not affect any other users.

IP Transport Edge

1. Delivers video to the access network.
2. Enables the technologies and performance to support demanding video requirements.

Hub

1. 7600 – Carrier class edge router – high performance. 30 million packets per second centrally. 400 million packets per second with distributed line cards. the 7600 can handle anything from a DS0 to an OC 192. It is a Quadruple play solution.
2. Demodulator – demodulates the signal to serial digital interface (SDI) (uncompressed) or Asynchronous Serial interface (ASI)
3. Encoder – see above
4. DCM – see above
5. Video Matrix Switch – see above
6. VOD system – see above

Access Network

1. 7600 – see above
2. DLSAM – DSL multiplexer. last mile from Telco or the sidewalk.
3. P2PE – point 2 point ethernet. ethernet to your home. Attaches a residential gateway to access technology. Also functions as an optical to electrical media converter.
4. HFC – Hybrid Fiber Coax – converts to an optical signal. Quadrature Amplitude Modulator (QAM)
5. PON – passive optical network – 2.5 gigs is shared via a virtual ring. Fiber saving between splitter and CO / POP. Analog overlay for existing broadcast services. Port saving tin the CO / POP. No deployment of active equipment in the outside plant.
6. Gateway – your home router which connects to a DSL or cable modem.
7. STB – set top box ( cable box / dvr cable box) – decodes a stream and formats for display in a TV. Enforces content restriction.
